Control & Shut Off Valve Test Bench
Vertical – CVTB-V

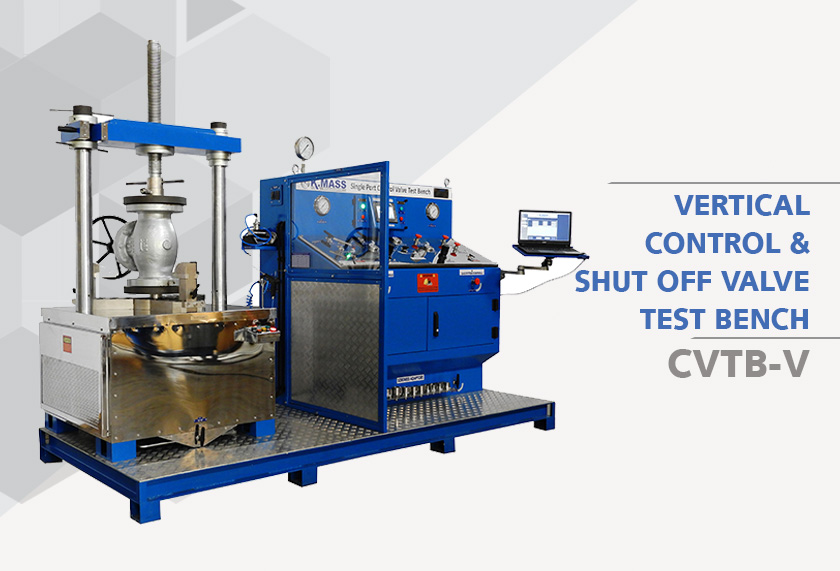

Configured with a dual Clamping System the CVTB-V is a range of Vertical Test Benches (Stem Horizontal) for Control & Shut Off Valves. Comprising of 3 or 4 Jaw Seat Clamping System coupled with a Swivelable Top Yoke, the CVTB-V range can also accommodate Safety Relief Valves, thus making them Universal Test Benches.

  • Dual Clamping Systems with Unilateral and Bilateral Clamping for Visual & Instrument leak test.
  • Swivelable Top Clamping Yoke, for easy mounting / removal of valves and to facilitate PSV testing.
  • Compatible with different types of Valve End connections like RF Flanges, RTJ Flanged, Wing Nut Flanged, Threaded & Butt Welded
  • Gravity based & pressurized liquid Priming (pre-filling) systems
  • In-built Bas Booster Systems
  • Skid Mount Units with eyebolts for easy handling with forklifts & hoists
  • Aluminum Chequered Flooring for clean and safe workspace
  • Sectional Lexan Polycarbonate (Unbreakable) Safety Screens
  • Quick Connect Swivel able Test Pressure Gauge Adaptors
  • Air Gun for Pre & Port cleaning & Leak Detection during liquid Tests.
  • External Test Bulkheads for ‘Ground Testing’
Configuration Single / Double Port
Clamping System Dual Clamping (Unilateral + Bilateral)
3 or 4 Jaw PLC Controlled Hydraulic Proportional Seat Clamping System with Safety Interlock
Swivelable Top Body Clamping Yoke with a Lead Screw
Valve Orientation Vertical (Stem Horizontal)
Size Range From ½” to 8” / 10” / 12” / 16”
Clamping Load 25 Tons / 35 Tons / 50 Tons / 75 Tons
Gas Testing Up to 10 / 210 / 345 / 400 bar
Liquid Testing Up to 210 / 400 / 690 bar
Applications Seat Test / Body Test / Shell Test

API Digital Laser Bubble Counters

Data Acquisition System

Actuator Utility Panel

Ground Test System

High Pressure Utility Air Supply System
