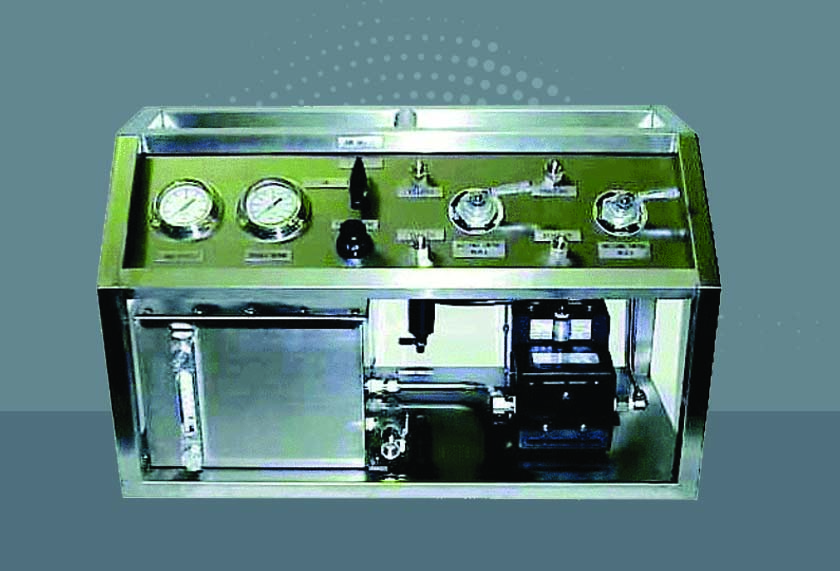

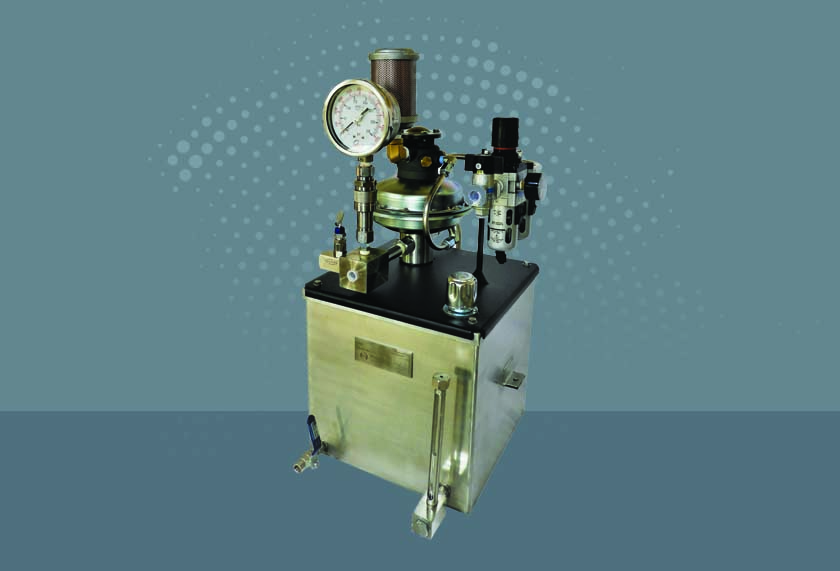

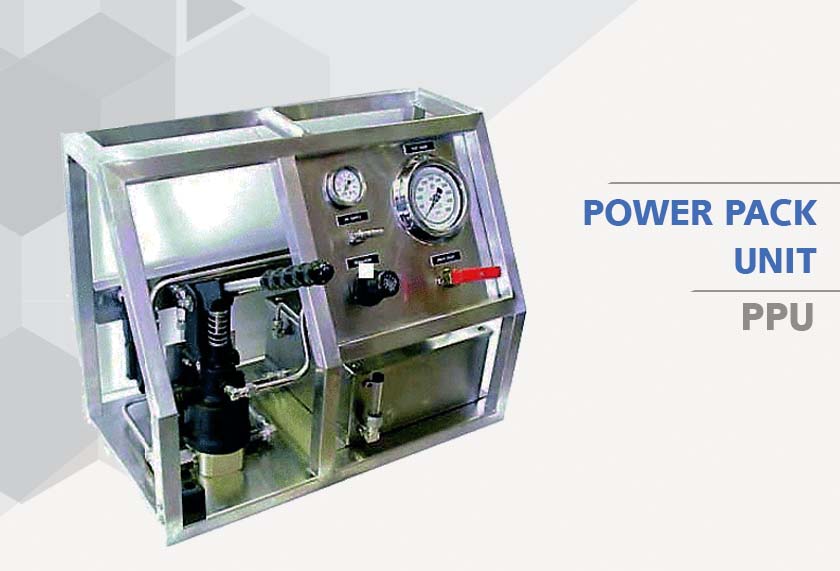

K.Mass manufactures the PPU range of self-contained & ready to operate Power Pack Units which only require compressed instrument air and test media supply for Hydraulic or Pneumatic pressurization of any equipment, system or pipeline.

Aptly suitable for Onshore and Offshore environments which require a remote pressure source these Power packs are tailored in various configurations depending on the user’s selection criteria. Designed as complete test units these systems are capable of performing Choke, Kill, Pressure and Burst Tests. These Power packs can also be used for Liquid or Gaseous chemical Injection.

Systems required for both High & Low Pressure / Volume applications can also be fitted with dual pumps.

Standard Power Pack Types Hydraulic Power Pack
Pneumatic Power Pack
Test Medium Compressed Air / Nitrogen
Standard Pressure Ranges From 0 – 10,000 psig for Liquids (Higher pressures available on request)
From 0 –6,000 psig for Gases (Higher pressures available on request)
Construction Type Static floor Mounted

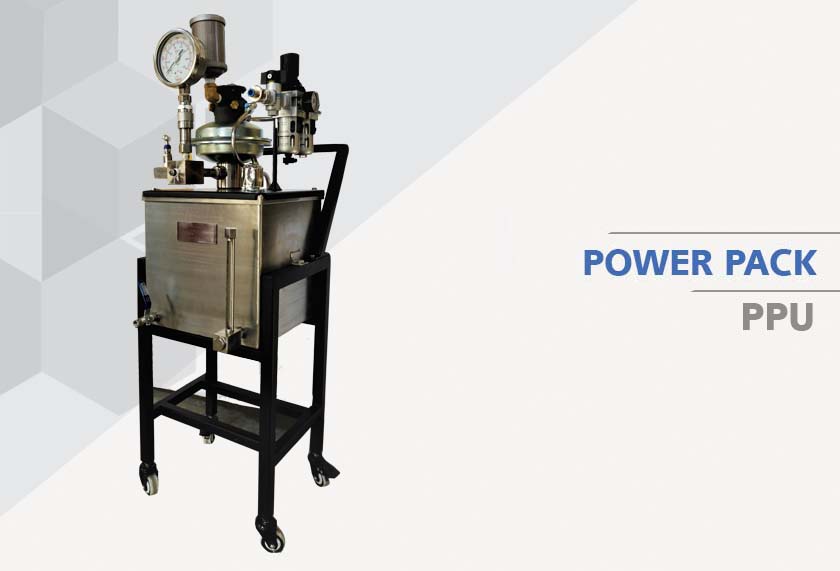

Portable with Castors
Pressure Range From vacuum up to 6000 psig on Liquid
From vacuum up to 6000 psig on Compressed Air / Nitrogen
  • ‘Sprague’ Air Driven Hydro Pumps & Gas Boosters
  • Drive Air Filter, Regulator & Pressure Gauge
  • Panel Mounted ‘HiP’ / ‘Swagelok’ / ‘Parker’ On / Off Valves
  • 2 Way manual Operated Needle Valves
  • 4” Panel Mounted Stainless Steel Outlet / Test Pressure Gauge
  • Stainless Steel High Pressure tubing
  • Safety Valves on Accumulators to protect against system over pressure
  • Priming Bypass facility in Liquid Power Packs to remove air bubbles from Test Object by filling up Liquid prior to testing.
  • Stainless Steel Pressure Inlet and Outlets
  • Rigid Carbon Steel / Stainless STeel, Powder coated Frame Structure
  • Electronic Over Pressure Protection System with a ‘Digital Read Out’ to preset the maximum pressure limit of the Test Bench & avoid accidents due to over pressure.
  • Panel mounted Stainless Steel Mechanical Circular Chart Recorder
  • Windows based Data Acquisition / Computer Registry System
  • SS-304 Liquid Reservoir with Accessories
  • Air Gun for cleaning of valves & Test Bench during & after the tests.
  • Stainless Steel Frame Structure to suit highly Corrosive environments/applications
