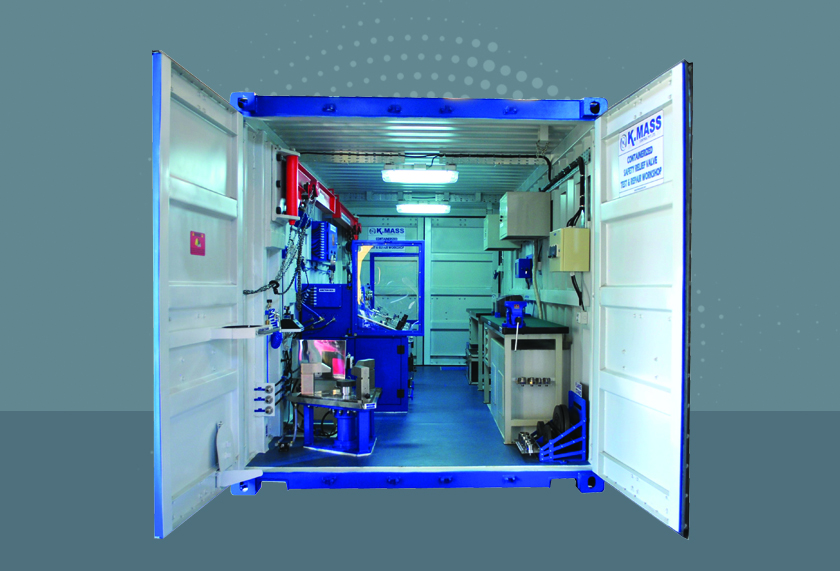

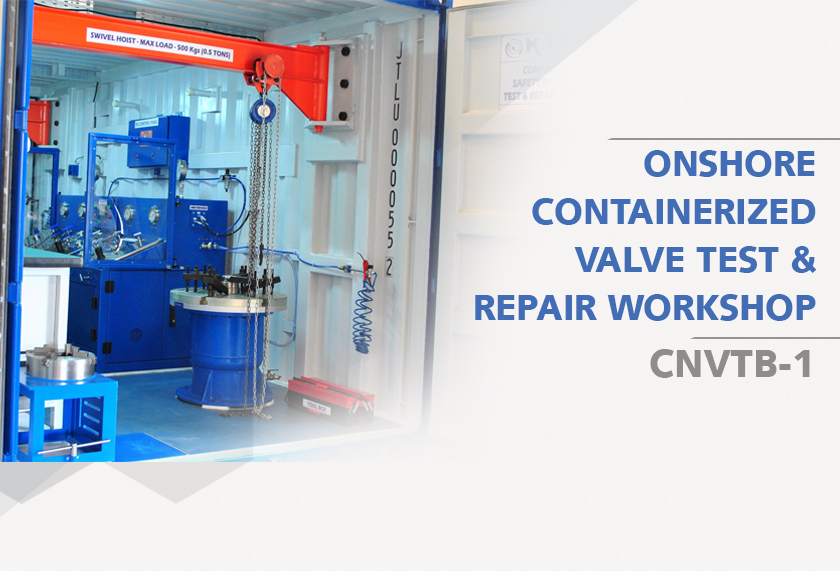

Containerized Valve Test & Repair Workshop
Onshore - CNVTB-1

Built for Onshore applications the CNVTB-1 range of Workshops are configured in standard dry freight (ISO) Containers duly certified to International Shipping Standards. Besides the customized Test & Overhaul equipment, the Workshops are completed with adequate tools, storage, work tables, swivel hoists, rubber flooring & air conditioning.

  • Certified ISO Containers for worldwide operation
  • Custom built, Valve specific Test Equipment with Data Acquisition & Certificate Management System
  • Complete piped, wired & assembled workshops for easy operation & maintenance.
  • Single point utility supply inlets for quick startup and operation
  • Lifting Lugs & Forklift Pocket for easy handling.
  • Swivelable hoist for heavy valves
  • Work benches & storage cabinets for streamlined workflow.
  • Shock resistant anti skid rubber flooring
  • Sectional as well as Enclosure type Lexan Polycarbonate (Unbreakable) Safety Screens
  • Climate Control with Air Conditioning and / or heating to suit adverse weather conditions.
  • Client specified RAL Paint & Custom Logos
Container Type Duly certified Dry Freight (ISO)
Container Size 10 / 20 / 40 feet
Container Version Standard / High Cube
Test Equipment Safety & Relief Valve Test Bench
Options Control & Shut Off Valve Test Bench
Breather Valve Test Bench
Combination Valve Test Bench (Multi Port & Combination Valve Test Benches can be installed in 20 feet and bigger workshops only.)
Overhaul Equipment Work Bench, Tool Box, Chuck Vice, Table Vice
Special Equipment Insitu Valve Grinding Lapping Machine.
Table Top Lapping Machine
Spring Tester
Power Tools (as required)
Hoisting Equipment Swivel Hoist / Beam Hoist
Electricals Superior Industrial Grade Electricals including Power Distribution & Fluorescent Lighting.
Climate Control Air Conditioning / Heating
Applications Onshore
