Control & Shut Off Valve Test Bench

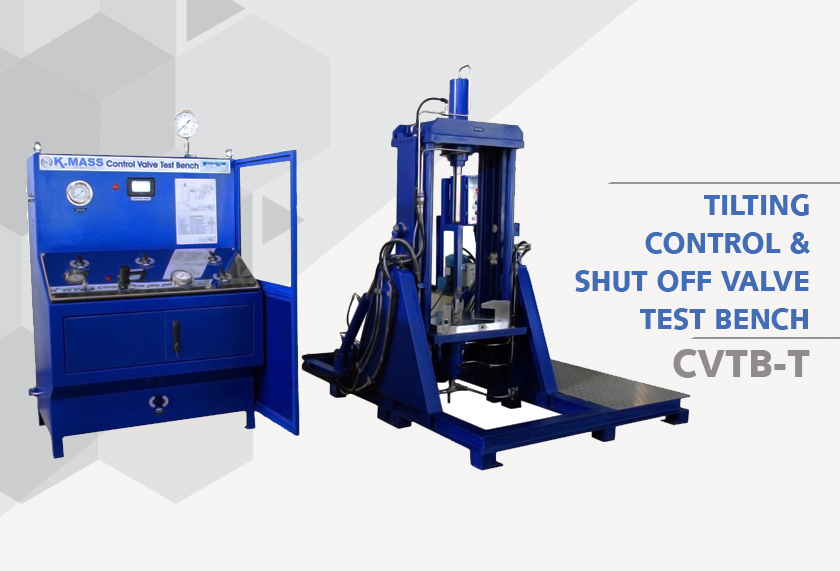

Tilting – CVTB-T

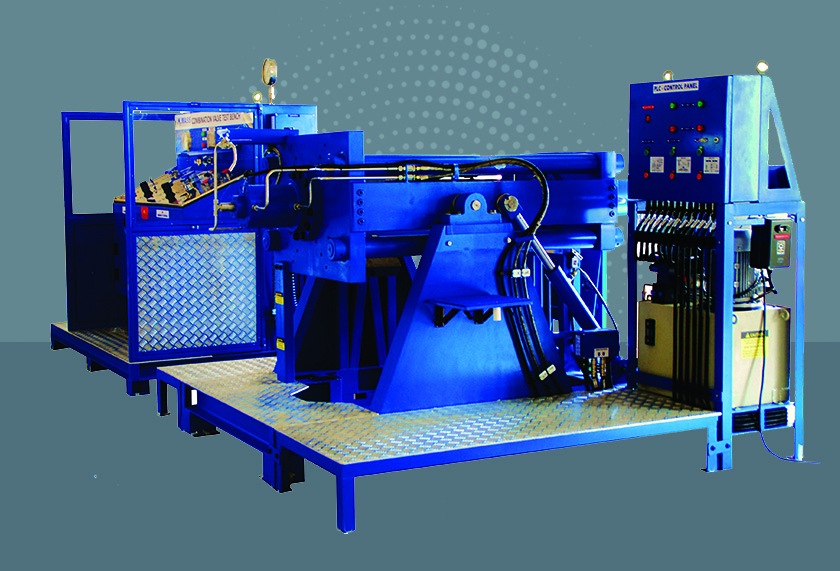

Blending the advantages of both Vertical & Horizontal test Systems, the CVTB-T range of Test Benches comprise of a clamping System which Tilts / Rotates 90°. The tilting feature not only facilitates easy mounting & removal of valves but also enables testing in any position between 0 to 90°. To add to the versatility of Valve Orientation the CVTB-T range comprises of a Dual Clamping System for Unilateral as well as Bilateral clamping.

  • 90° Tilting Test Port for easy mounting / removal of Valves & Horizontal or Vertical test Simulation.
  • Dual Clamping Systems with Unilateral and Bilateral Clamping for Visual & Instrument leak test.
  • Fluid Drip Tray for overflow & drain media collection.
  • Compatible with different types of Valve End connections like RF Flanges, RTJ Flanged, Wing Nut Flanged, Threaded & Butt Welded
  • Gravity based & pressurized liquid Priming (pre-filling) systems
  • In-built Bas Booster Systems
  • Skid Mount Units with eyebolts for easy handling with forklifts & hoists
  • Aluminum Chequered Flooring for clean and safe workspace
  • Sectional Lexan Polycarbonate (Unbreakable) Safety Screens
  • Quick Connect Swivel able Test Pressure Gauge Adaptors
  • Air Gun for Pre & Port cleaning & Leak Detection during liquid Tests.
  • External Test Bulkheads for ‘Ground Testing’
Configuration Single / Double Port
Clamping System Dual Clamping (Unilateral + Bilateral)
3 or 4 Jaw PLC Controlled Hydraulic Proportional Seat Clamping System with Safety Interlock
Compression type, PLC Controlled Hydraulic Proportional Body Clamping System with Safety Interlock
Valve Orientation Horizontal (Stem Vertical)
Size Range From ½” to 8” / 10” / 12” / 16”
Clamping Load 25 Tons / 35 Tons / 50 Tons / 75 Tons
Gas Testing Up to 10 / 210 / 345 / 400 bar
Liquid Testing Up to 210 / 400 / 690 bar
Applications Seat Test / Body Test / Shell Test

API Digital Laser Bubble Counters

Data Acquisition System

Actuator Utility Panel

Ground Test System

High Pressure Utility Air Supply System
