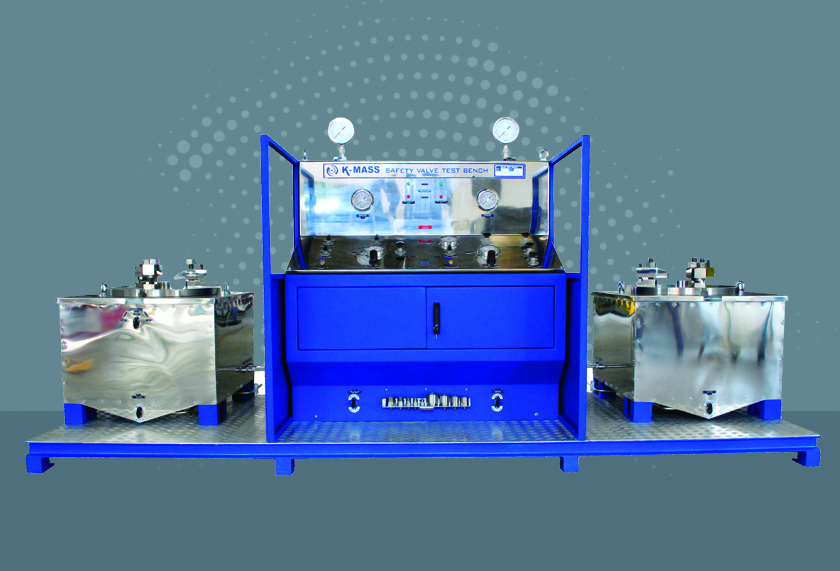

Safety Valve Test Bench

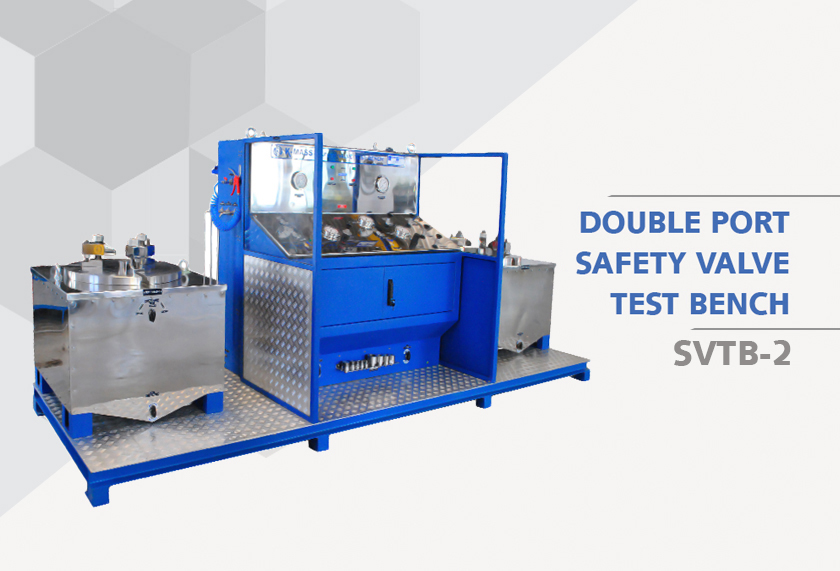

Double Port – SVTB-2

Delivered ready to use as a ‘plug & play’ system the SVTB-2 is a Double Port Safety Valve Test Bench with unique features which combine Performance & Accuracy with Versatility & Safety.


  • Simultaneous & Individual Test Enabled Test Ports
  • Multiple options for Clamping Systems including Combinations for both ports
  • Compatible with different types of Valve End connections like RF Flanges, RTJ Flanged, Wing Nut Flanged & Threaded
  • Gravity based & pressurized liquid Priming (pre-filling) systems
  • In-built Bas Booster Systems
  • Skid Mount Units with eyebolts for easy handling with forklifts & hoists
  • Aluminum Chequered Flooring for clean and safe workspace
  • Sectional as well as Enclosure type Lexan Polycarbonate (Unbreakable) Safety Screens
  • Quick Connect Swivel able Test Pressure Gauge Adaptors
  • Air Gun for Pre & Port cleaning & Leak Detection during liquid Tests.
  • External Test Bulkheads for ‘Ground Testing’
Configuration Double Port
Clamping System 3 Jaw Manual Clamping System
3 Jaw Mechanical Auto Clamping System (Semi Automatic)
3 Jaw PLC Controlled Hydraulic Proportional Clamping System with Safety Interlock
Valve Orientation Vertical
Size Range From ½” to 8” / 10” / 12” / 16”
Clamping Load 25 Tons / 35 Tons / 50 Tons
Gas Testing Up to 150 / 210 / 345 / 400 bar
Liquid Testing Up to 210 / 400 / 690 bar
Applications Set Pressure / Seat Leakage / Back Pressure
